Stainless Hlau Grating - 304 & 316 Cov ntaub ntawv rau cov dej num corrosive

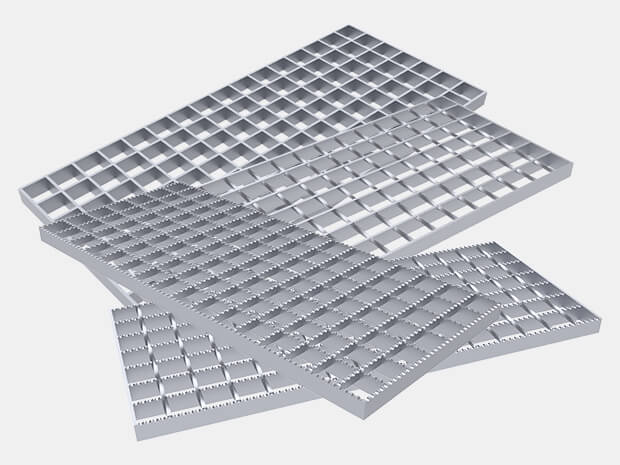

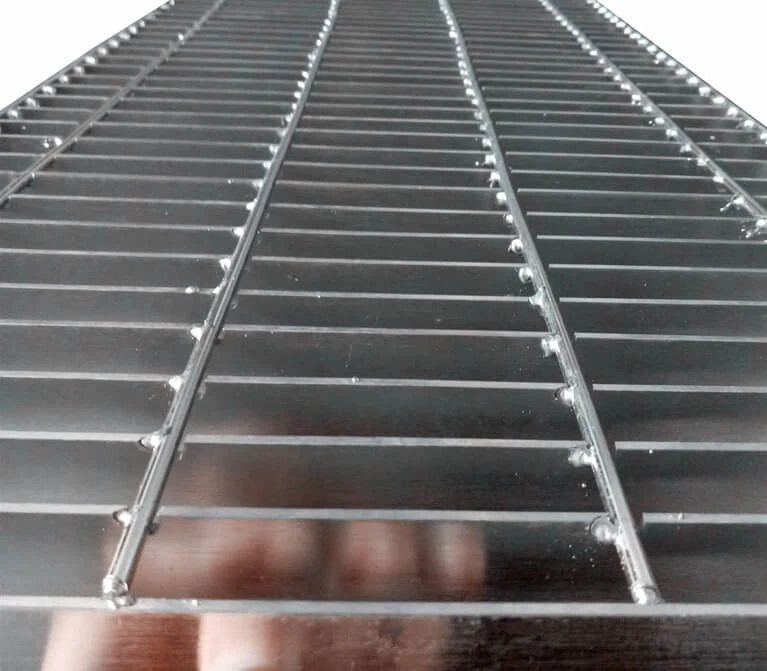

Stainless Hlau Gratingyog kev muaj kev lag luam qib bar grating, uas yog qhov tsis tshua muaj zog, ruaj khov thiab corrosive resistant rau tag nrho cov kev siv neeg taug kev thiab lub teeb tsheb tsheb.

Ob qho tib si hauv kev du lossis zrated nto.



• 304 lossis 316 qib rau kev xaiv.
• Ntau yam ntawm kev coj tus kheej bar ntau thiab tsawg thiab pitches.
• Luv nqi tshwj xeeb rau cov xaj loj.
• Cov phiaj xwm siv tau tuaj yeem muab rau koj txoj kev twv.
• ISO ntawv pov thawj Hoobkas.
• CAD lossis 3D kos duab tuaj yeem muab rau koj cov qauv tsim thiab kev tsim kho.









Khoom: Stainless hlau 304, 304L, 316, 316L.

Ua tiav: zeb tiav, ua lag luam huv thiab electro polished.

Cov Kab Hlau Bar Vacing: 25 hli, 30 hli, 33 hli, 35 hli, 40 hli.

Hla Bar Spacing: 2 "lossis 4" ntawm qhov chaw.

Cov lus tshwj xeeb tshwj xeeb tuaj yeem kho tau.



Ntaus	Kev piav txog	Lub zog tensile	Pub
304	Zoo corrosion tsis kam, lub zog siab tensile zog, zoo heev rau kev ua tshuaj lom, cov zaub mov, cov nroj tsuag hluav taws xob thiab cov dej khib nyiab. Siv rau hauv cov ntawv thov kub siab	75,000 psi (min.)	30,000 psi (min.)
316	Zoo dua corrosion thiab pitting ua kom tsis yog hom 304, siv cua sov zoo, siv tshuaj lom neeg, cov khoom siv marrine, khoom siv roj textile, roj av ntxiv.	75,000 psi (min.)	30,000 psi (min.)

Metric Lus Dab	German negerns
U {=} Tsis muaj kev nyab xeeb thauj khoom (KPA) C =} maj mam allenrated load (kn / meter ntawm grating dav) D=deflection (hli)	U {=} Tsis muaj kev nyab xeeb thauj (LBS./FT2) C =} nyab xeeb ense kom muaj zog (lbs ./foot ntawm grating dav) D=deflection (nti)

Qib stainless hlau	Load / deflection	Lauber Carbon Steel LOAD cov lus los ntawm:	Raws li kev lom zem tshaj plaws fiber ntau
304stainless Hlau	U	1.111	20,000 PSI (137.9 MPA)
	C	1.111
	D	1.151
304Lstainless Hlau	U	0.917	16,500 psi (113.8 MPA)
	C	0.917
	D	0.949
316Stainless steel	U	1.111	20,000 PSI (137.9 MPA)
	C	1.111
	D	1.151
316Lstainless steel	U	0.917	16,500 psi (113.8 MPA)
	C	0.917
	D	0.949





Stainless Hlau Gratingtuaj yeem muab cov tshuaj cog lus ruaj khov rau corrosive tsis kam thiab platform rau cov tshuaj lom thiab chaw cia khoom thiab dej khib nyiab thiab dej khib nyiab.
