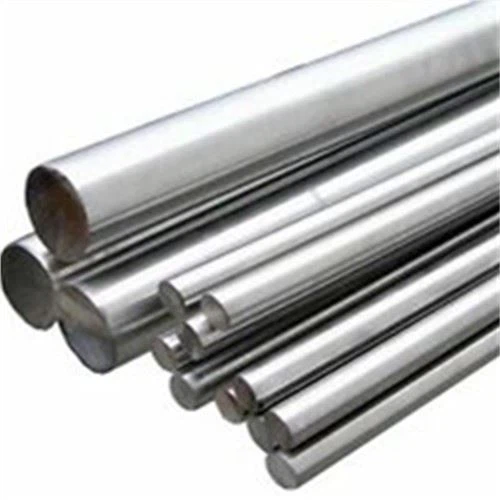

Stainless 316H Round Bar

Raws li kev lag luam tau txais txiaj ntsig ntawm kev lag luam, GNEE Steel tau koom nrog muab ntau yam ntawm Stainless Steel 316HRound Bars (SS 316H Round Bars) ua cov chaw tsim khoom, xa tawm, stockiest thiab xa khoom rau peb cov neeg siv khoom hauv tsev thiab thoob ntiaj teb. Ntxiv rau qhov zoo tshaj plaws corrosion kuj thiab lub zog ...

Stainless Steel 316H Round Bar

316h Stainless Hlau Round, Ci, Hex, Threaded Bar Chemical Composition

Cov tshuaj muaj pes tsawg leeg ntawm qib Stainless Steel 316h Round Bar yog teev nyob rau hauv cov lus hauv qab no

Qib		C	Mn	Si	P	S	Cr	Mo	Ni	N
316H	Min	0.04	0.04	0	-	-	16.0	2.00	10.0	-
max	0.10	0.10	0.75	0.045	0.03	18.0	3.00	14.0	-

316h Round Bar Mechanical thiab Physical Properties

Cov khoom siv kho tshuab ntawm qib 316h Round Bar tau tshwm sim hauv cov lus hauv qab no.

Qib	Tensile Str (MPa) min	Yield Str 0.2 feem pua Pov thawj (MPa) min	Elong (feem pua hauv 50mm) min	Hardness
Rockwell B (HR B) max	Brinell (HB) max
316H	515	205	40	95	217

316h Round Bar Lub cev muaj zog

Lub cev muaj zog ntawm 316h stainless hlau Round Bar nyob rau hauv cov mob annealed

Qib	Qhov ntom (kg / m3)	Elastic Modulus (GPa)	Lub ntsiab lus Co-eff ntawm Thermal Expansion (Aµm/m/degree)	Thermal conductivity (W/m.K)	Tshwj xeeb kub 0-100 degree (J/kg.K)	Elec Resistivity (nÎ©.m)
0-100 degree	0-315 degree	0-538 degree	Ntawm 100 degree	Ntawm 500 degree
316l/L/H	8000	193	15.9	16.2	17.5	16.3	21.5	500	740
