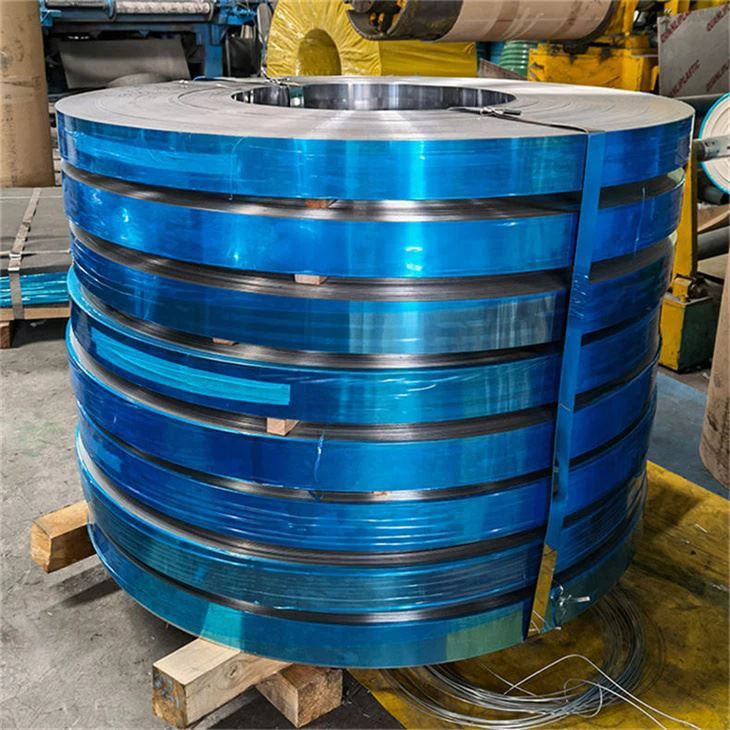

35H440 Non Grain Oriented Hluav taws xob cov hlau
35H440 Non Grain Oriented Hluav taws xob cov hlau muaj cov khoom siv zoo, suav nrog lub zog tensile siab thiab tsis muaj zog tawm los. Qhov no ua rau nws tsim nyog siv rau hauv cov ntawv thov uas nws yuav raug rau cov neeg kho tshuab kev ntxhov siab.
35H440 steel specifications
| Thickness | Xav tias Qhov ntom |
Core poob (W / Kg) | Core poob (W / Lb) | Induction (800A/m) |
Lamination Qhov xwm txheej (yam tsawg kawg) |
Lus ceeb toom | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 Hz | 60 Hz | 50 Hz | 60 Hz | |||||||||
| mm | Kg/dm 3 | 1.0T | 1.5T | 1.0T | 1.5T | 1.0T | 1.5T | 1.0T | 1.5T | |||
| 0.35 | 7.70 | 1.80 | 4.40 | 2.30 | 5.60 | 0.82 | 2.00 | 1.04 | 2.54 | 1.65 | 95.0 | - |
35H440 silicon steel Hom Hluav Taws Xob thiab Sib Nqus Cov Khoom
| Xav tias Qhov ntom |
Kev tiv thaiv | Core Loss | Induction T |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W/Kg | W/LB | ||||||||||
| Kg/dm 3 | Ohm * Meter (X10e-8) |
50 Hz | 60 Hz | 50 Hz | 60 Hz | ||||||
| 1.0T | 1.5T | 1.0T | 1.5T | 1.0T | 1.5T | 1.0T | 1.5T | 2,500A/m | 5,000A/m | ||
| 7.70 | 39 | 1.41 | 3.10 | 1.74 | 3.84 | 0.64 | 1.41 | 0.79 | 1.74 | 1.62 | 1.70 |
35H440 Hluav taws xob cov hlau yam khoom siv thiab lamination Factors
| Tensiile zog | Yield Point | Elongation feem pua |
Hardness Hv(1) |
Khoov Test tus nqi |
Lamination Qhov xwm txheej feem pua |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N / hli 2 | lb/in2 (X10e3) | N / hli 2 | lb/in2 (X10e3) | ||||||||||
| L | C | L | C | L | C | L | C | L | C | L | C | ||
| 451 | 471 | 65 | 68 | 304 | 314 | 44 | 46 | 30 | 32 | 157 | 30 | 25 | 98.0 |
Q: Koj lub tuam txhab ua haujlwm li cas?
A: Peb lub tuam txhab yog cov chaw tsim khoom.
Peb tsuas yog tsim stainless hlau phaj / yeeb nkab / coil / puag ncig tuav, nrog rau txhuas phaj / yeeb nkab / coil / bar
Q: Dab tsi yog qhov zoo ntawm koj lub tuam txhab?
A:
(1): Prime zoo thiab tus nqi tsim nyog.
(2): Kev paub zoo heev nrog kev pab cuam tom qab muag.
(3): Txhua tus txheej txheem yuav raug tshuaj xyuas los ntawm lub luag haujlwm QC uas lav txhua yam khoom zoo.
(4): Pab pawg kws tshaj lij uas khaws txhua qhov kev ntim khoom kom zoo.
(5): Kev txiav txim mus sib hais tuaj yeem ua tiav hauv ib lub lis piam.
(6): Cov qauv tuaj yeem muab tau raws li koj xav tau.
Q: Koj cov nqe lus them nqi yog dab tsi?
A: Them nyiaj<=1000usd, 100="">=1000USD, 30 feem pua T / T ua ntej, tshuav nyiaj li cas raws li daim ntawv BL lossis LC thaum pom.
<=1000usd, 100="">Yog tias koj muaj lus nug ntxiv, thov hu rau peb raws li hauv qab no
Q: Ua li cas txog koj tus nqi?
A: Peb tus nqi sib tw heev vim peb yog lub Hoobkas.
Pls xav tiv tauj peb yog tias koj txaus siab rau peb cov khoom.
Q: Koj lub sijhawm xa khoom ntev npaum li cas?
A: Cov khoom sib txawv muaj lub sijhawm xa khoom sib txawv.Cov khoom yuav raug xa sai li sai tau raws li qhov kev lees paub zoo. Feem ntau lub sijhawm xa khoom yog nyob rau hauv 5 hnub tom qab peb tau txais koj cov nyiaj tso cia.
Peb muaj cov khoom lag luam loj ntawm 35H440 Hluav Taws Xob Hlau los lav kev xa khoom sai
Cim npe nrov: 35h440 non grain oriented hluav taws xob steel, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, yuav, nqe, pricelist, kev muag, hauv Tshuag, dawb qauv
