Cold Rolled Forming Steel
DC01 txias kuav los tiag steel yog ib qho ntawm feem ntau siv cov hlau me me raws li EN 10130 tus qauv. Paub txog nws qhov zoo tshaj plaws ntawm qhov chaw, kev ua haujlwm zoo ib yam, thiab muaj peev xwm ua tau zoo dua, DC01 yog cov khoom siv hauv kev tsim tsheb, cov khoom siv hauv tsev, rooj tog hlau, cov khoom siv, thiab precision-engineered parts.
Nto zoo
Nto zoo A
Qhov tsis xws luag uas tsis cuam tshuam rau formability los yog daim ntawv thov ntawm nto txheej yog tso cai. Lawv yog cov tsis xws luag xws li pores, me me khawb, me ntsis indentations, me grooves los yog me ntsis discoloration.
Nto zoo B
Cov sab zoo dua yuav tsum tsis muaj qhov tsis xws luag uas tuaj yeem ua rau lub cev tsis zoo ntawm lub siab - cov xim zoo lossis cov txheej txheem electrolytic. Sab nraud yuav tsum tsawg kawg ua raws li qhov zoo ntawm qhov chaw A. Tsis yog txhua qhov sib txuas ntawm cov tuab thiab dav muaj nyob rau hauv qhov zoo ntawm B. Thov hu rau peb kom paub meej.
Tshuaj xyuas sab
Raws li txoj cai, sab sauv ntawm lub sawb raug tshuaj xyuas; ntawm kev thov, lub sawb tuaj yeem raug mob kom cov tshuaj xyuas sab hauv qab.
Deg kev ntxhib los mos / roughness
Txias- dov annealed thiab daim tawv nqaij- dhau hlau yog muaj nyob rau hauv ntau qhov chaw textures. Tshwj tsis yog tias tau teev tseg lwm yam, GNEE Steel yuav muab cov roughness ib txwm. Cov lus hauv qab no qhia txog ntau yam ntawm cov ntaub ntawv nto raws li EN 10130: 2006.
|
Roughness Ra (µm) |
||
|---|---|---|
|
TS EN 10130: 2006 |
Cim |
txiav tawm 0.8 mm |
|
ntxiv - kaj1 |
- |
Tsawg dua lossis sib npaug li 0.3 |
|
kaj |
b |
Tsawg dua los yog sib npaug li 0.4 |
|
semi- kaj |
g |
Tsawg dua lossis sib npaug li 0.9 |
|
ib txwm |
m |
0.6 - 1.9 |
|
ntxhib |
r |
> 1.6 |
|
ntxiv - ntxhib2 |
- |
3.5 - 5 |
Preservative roj
Cov roj txheem siv los ntawm GNEE Steel ua raws li kev tiv thaiv txheej. Lwm hom roj tuaj yeem muaj raws li qhov koj xav tau.
GNEE Steel muaj ntau qib roj ntawm 0.25 - 1.7 g/m2 rau ib sab.Lwm cov roj qib muaj nyob rau ntawm kev thov.
Kev huv ntawm qhov chaw
GNEE Steel tuaj yeem lav txhim kho kev huv ntawm qhov chaw ntawm kev thov rau batch-cov khoom lag luam annealed. Qhov kev huv huv yog sim nrog kev kuaj kab xev, uas qhov kev poob ntawm kev xav tau ntsuas. Lub reflection muab ib qho kev qhia txog cov roj residue ntawm cov khoom annealed. Ob theem ntawm kev poob ntawm kev xav tau muaj rau cov khoom lag luam batch annealed: qhov siab tshaj ntawm 20% lossis ntau tshaj 30%.
Daim ntawv thov
Automotive Cheebtsam thiab lub cev panels
Cheebtsam rau lub tsev
Cov khoom siv hauv tsev
Cov khoom siv hluav taws xob
Rooj tog
Radiators
Cov raj
Kev sib raug zoo nrog cov qauv
Txias- dov steel rau kev tsim ua raws li European tus qauv EN 10130: 2006 thiab muaj nyob rau hauv cov qib qhia hauv qab no.
|
European txheem |
|---|
|
TS EN 10130: 2006 |
|
Qib |
|
dc01 ua |
|
dc03 ua |
|
dc04 ua |
|
dc05 ua |
|
dc06 ua |

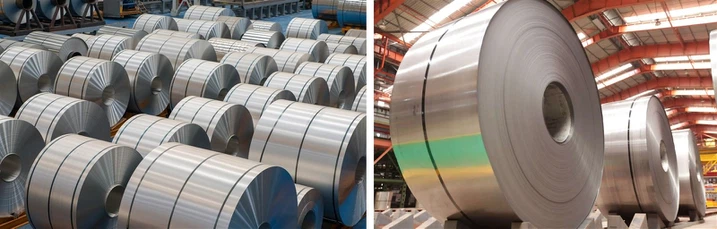

GNEE STEEL cov khoom sivDC01 txias dov hlau nyob rau hauv coils, nplooj ntawv, thiab customized hom, nrog rau lwm yam qib xws li DC03, DC04, DC05, thiab DC06. Nrog cov khoom ruaj khov, kev tswj xyuas nruj, thiab cov kev qhia yooj yim, GNEE STEEL txhawb nqa cov neeg siv khoom thoob ntiaj teb kom ua tiav cov khoom tsim tau zoo thiab siab - cov khoom lag luam zoo.
