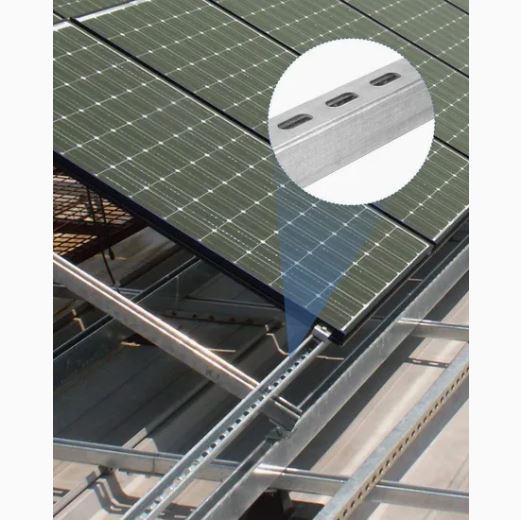

Kub-DIP Galvanizing PV Bracket Hnub Ciyog lub siab - hnub ci bracket zoo tsim rau hauv av installation. Ua los ntawm kub-dip galvanized steel, lub hnub ci bracket no ruaj khov thiab huab cua- tiv taus, kom ntseeg tau ntev- kev ua tau zoo nyob rau hauv ntau yam sab nraum zoov. Lub hauv paus tsim tso cai rau kev yooj yim installation thiab txij nkawm, ua rau nws yog ib qho kev xaiv zoo tshaj plaws rau ob qho tib si hauv tsev thiab kev lag luam hnub ci. Nrog nws cov kev txhawb zog muaj zog thiab ruaj khov, lub hnub ci hauv av no muab lub hauv paus ruaj ntseg rau cov hnub ci vaj huam sib luag, ua kom muaj zog ntau lawm. Kev ntseeg siab hauv GNEE STEEL Factory Direct Sales Ground Centralized Hot-DIP Galvanizing PV Bracket Hnub Ci rau kev txhim khu kev qha thiab ua haujlwm zoo hnub ci vaj huam sib luag mounting daws teeb meem.
Daim ntawv Specification
|
Cua Load |
60m/s |
|
Daus Load |
1.4 Kn / m2 |
|
Warranty |
15 xyoo rau Steel Structure, 5 xyoo rau lwm yam hnub ci qhov chaw, Lifetime technical support |
|
Khoom npe |
Hauv av centralized pv bracket hnub ci |
|
Khoom siv |
Lub zog siab galvanized steel + ob npaug - txheej sealant, Cua siab ua haujlwm qib siab dua los yog sib npaug rau 12, corrosion kuj lub neej ntawm ntau tshaj 25 xyoo |
|
Daim ntawv pov thawj |
ISO9001/CE/14001/45001/Rohs/GB |
|
Txuj |
JIS/GB/CE/ISO |
|
Foundation |
Pob zeb |
|
Max Cua Ceev |
60m/s |
|
Daus Load |
1.4 Kn / m2 |
|
Kev kho saum npoo |
Kub dip galvanized los yog zinc aluminium magnesium coated |
|
Feature |
tsis yog -waterproof |
|
Kev Pabcuam Lub Neej |
20 ~ 30 Xyoo |
| Qib | Q235B |
| pv module | Monocrystalline silicon / polycrystalline silicon (yeem), Kev hloov pauv kev ua haujlwm ntau dua lossis sib npaug li 22%, txhawb MPPT kev hloov kho ntse |
| Load bearing muaj peev xwm | 3-5 tons / square meter (kho tau), Kev them nyiaj yug lub tsheb / tsheb thauj khoom, haum rau cov chaw logistics, chaw ua si thiab lwm yam xwm txheej |
| Kev tsim hluav taws xob | Kev tsim hluav taws xob ib xyoos ib zaug ntawm 10000-15000kWh ib 100 square metres, Kev txhawb nqa lub zog cia tuaj yeem ua tiav tus kheej txaus hauv hluav taws xob |
| kev pabcuam customized | Yam tsawg kawg nkaus txiav txim kom muaj nuj nqis ntawm 1 teeb, txhawb qhov loj / xim customization, Lub Hoobkas muab 3D qauv thiab load xam cov kev pab cuam |
| Lub kaum sab xis kho qhov ntau | 0℃-60 degree |
| Txoj kev teeb tsa | Pre assembled qauv + yooj yim lub cuab tam installation |
| Lub sij hawm xa tuaj | Kev xa tuaj tuaj yeem ua tiav tsis pub dhau 7 hnub ntawm qhov nrawm tshaj plaws, tsis tas yuav tsum tau loj - kev kho dua tshiab ntawm cov tsev uas twb muaj lawm |
| Tswj hom | tswj chaw taws teeb |
Qhov zoo
1.High durability hnub ci bracket
Lub hnub ci ruaj khov siab ntev: Lub bracket yog ua los ntawm siab -qualityQ235B siab- lub zog carbon steel cov khoom, nrog cov khoom muaj zog- bearingcapacity thiab cua thiab daus.
Integrated photovoltaic zog tsim + teeb pom kev zoo: prefabricated pawg pab txhawb nqa, ua tiav kev xa tawm ntawm ntug dej hiav txwv zog hauv 10 hnub
2. Integrated tsim
2025 customized photovoltaic bracket + nuv ntses lub teeb: prefabricated pawg hauv paus rau kev teeb tsa sai, lub zog tshiab -txuag kev daws teeb meem rau cov chaw nres nkoj terminals
Integrated tsim: Kev sib koom ua ke ntawm photovoltaic zog tsim thiab toj roob hauv pes teeb pom kev zoo txuag chaw thiab nqi.
3. Cov qauv tau txais txiaj ntsig siab
Cov qauv tau txais txiaj ntsig siab: tsim hluav taws xob rau lub teeb pom kev zoo thiab siv tus kheej, thiab tsim cov nyiaj tau los ntxiv los ntawm kev sib txuas hluav taws xob ntau ntxiv rau daim phiaj.
Kev pabcuam dawb: Lub Hoobkas tuaj yeem muab cov qauv dawb rau koj, tsim qauv pub dawb rau koj, kev txhawb nqa kev teeb tsa, thiab kev ua haujlwm thiab kev txhawb nqa rau koj.
Daim ntawv thov Scenario
Nuv ntses dock:muab teeb pom kev zoo rau cov chaw nres nkoj nuv ntses thiab muab lub zog rau cov chaw nres nkoj.
Ntug hiav txwv dej:Kev sib txuas ntawm ntug dej hiav txwv txoj kev thiab kev soj ntsuam decks los tsim kom muaj qhov tsis zoo carbon teeb pom kev zoo.
Cov dej hauv av:lub zog-txuag teeb pom kev zoo thiab lub zog tsim hluav taws xob rau cov pas dej ntses nyob ib puag ncig cov pas dej thiab cov pas dej.
Municipal Engineering:ntse zog infrastructure nyob rau hauv pej xeem tej chaw xws li chaw ua si thiab squares.
Case Studies
FAQ
1. Q: Cov ntaub ntawv dab tsi uas feem ntau siv rau hnub ci mounting systems?
A:Cov khoom siv feem ntau yogAluminium (AL6005-T5)rau ru tsev systems vim nws lub teeb yuag thiab corrosion kuj, thiabKub-Dipped Galvanized Steel (Q235B/Q355B)los yogZinc-Aluminium-Magnesium (ZAM)coated steel rau hauv av-mounted tej yaam num los xyuas kom meej lub zog.
2. Q: Qhov nruab nrab lifespan ntawm koj cov qauv mounting yog dab tsi?
A:Peb cov tshuab yog tsim los rau lub neej ua haujlwm yam tsawg kawg nkaus25 xyoo, txuam lub sij hawm warranty feem ntau ntawm cov hnub ci vaj huam sib luag.
3. Q: Koj ua li cas kom ntseeg tau qhov corrosion ntawm cov khoom siv hlau?
A:Rau cov khoom siv steel, peb sivKub-Dip Galvanization (HDG)nrog ib txheej thickness feem ntau nruab nrab ntawm65-85μm(raws li qhov yuav tsum tau ua ntawm qhov project), ua kom muaj kev ua haujlwm siab txawm tias nyob hauv qhov chaw ntub dej lossis dej ntsev.
4. Q: Lub mounting system puas tuaj yeem tiv taus huab cua huab cua zoo li nag xob nag cua lossis daus hnyav?
A:Yog lawm. Peb cov engineers kho tus qauv tsim raws li qhov project-cov ntaub ntawv tshwj xeeb. Peb tuaj yeem tsim rau cua nrawm mus txog60m/sthiab snow loads mus txog1.5 kN/m²lossis siab dua, ua raws li AS / NZS 1170, Eurocode, lossis ASCE cov qauv.
5. Q: Puas yog lub kaw lus puas haum nrog ntau hom hnub ci vaj huam sib luag?
A:Peb cov clamps thiab rails yoguniversal. Lawv yog adjustable los yog tshwj xeeb me me kom haum rau ob qho tib si framed thiab frameless modules, nrog rau qhov tseeb loj - hom panels (xws li, 210mm los yog 182mm hlwb).

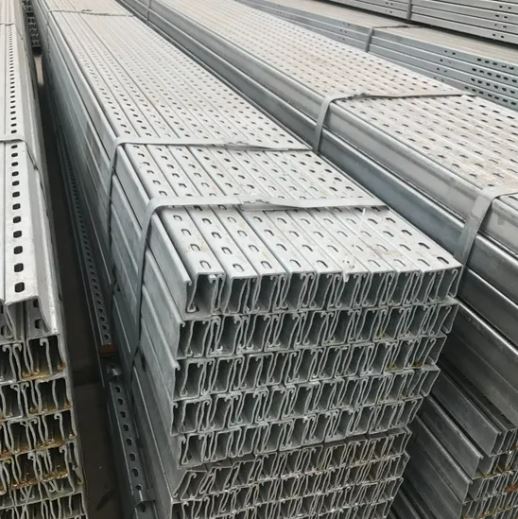

Cim npe nrov: u-channel steel beam tsim rau hnub ci bracket kev them nyiaj yug, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, yuav, nqe, pricelist, kev muag khoom, hauv Tshuag, dawb qauv
